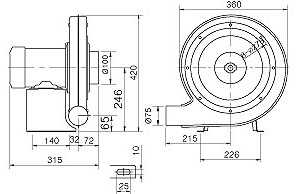

KHB-400S |
 |
|
|
| |
|
| |
|
Voltage(V) |
Outer diameter of the wing
(ø Cm) |
Number of poles
(p) |
Power (kw) |
Frequency
(Hz) |
Rated current (A) |
Revolution per minutes
(rpm) |
Wind volum
(§©/min) |
Rated pressure
(mmAq) |

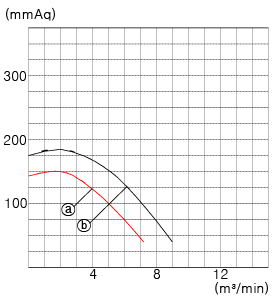

Performance curve
(Curve) |
Weight
(kg) |
|
1Ø
200~220V |
257 |
2 |
0.4 |
50 |
2.9 |
2820 |
7.2 |
150 |
a |
18.5 |
| 60 |
3.2 |
3380 |
9.0 |
185 |
b |
|
| |
| |
|

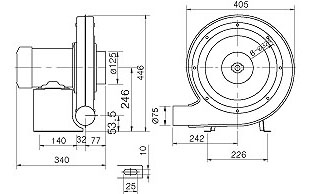

KHB-750S |
|
|
|
| |
|
| |
|
Voltage(V) |
Outer diameter of the wing
(ø Cm) |
Number of poles
(p) |
Power (kw) |
Frequency
(Hz) |
Rated current (A) |
Revolution per minutes
(rpm) |
Wind volum
(§©/min) |
Rated pressure
(mmAq) |

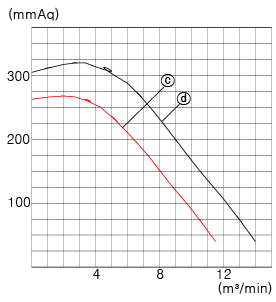

Performance curve
(Curve) |
Weight
(kg) |
|
1Ø
200~220V |
302 |
2 |
0.75 |
50 |
5.8 |
2850 |
11.5 |
267 |
c |
20.5 |
| 60 |
6.2 |
3420 |
14 |
320 |
d |
|
| |
| |
|
KHB-400T |
|
|
|
| |
|
| |
|
Voltage(V) |
Outer diameter of the wing
(ø Cm) |
Number of poles
(p) |
Power (kw) |
Frequency
(Hz) |
Rated current (A) |
Revolution per minutes
(rpm) |
Wind volum
(§©/min) |
Rated pressure
(mmAq) |

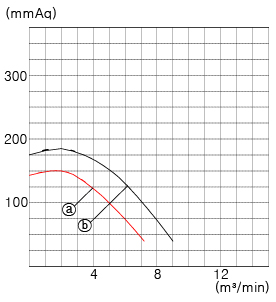

Performance curve
(Curve) |
Weight
(kg) |
|
3Ø200~240V
/380~440V |
257 |
2 |
0.4 |
50 |
1.9/1.1 |
2820 |
7.2 |
150 |
a |
17.5 |
| 60 |
2.0/1.2 |
3380 |
9.0 |
185 |
b |
|
| |
| |
|
KHB-750T |
|
|
|
| |
|
| |
|
Voltage(V) |
Outer diameter of the wing
(ø Cm) |
Number of poles
(p) |
Power (kw) |
Frequency
(Hz) |
Rated current (A) |
Revolution per minutes
(rpm) |
Wind volum
(§©/min) |
Rated pressure
(mmAq) |

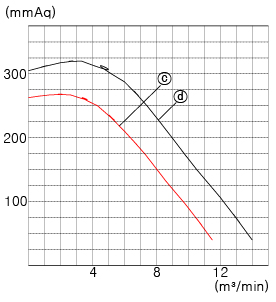

Performance curve
(Curve) |
Weight
(kg) |
|
3Ø200~240V /380~440V |
302 |
2 |
0.75 |
50 |
3.5/2.0 |
2850 |
11.5 |
267 |
c |
19.5 |
| 60 |
.6/2.2 |
3420 |
14 |
320 |
d |
|
| |
| |
 |
|
| |
|

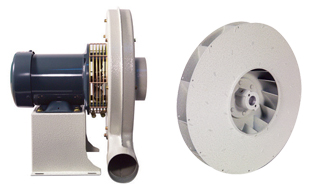

High temperature blower is 50mm longer in C. L than standard type, while its wind direction and pressure are not changed.
Direction of the discharging wind can be adjusted at intervals of 45°. Before changing the wind discharging direction by
reinstalling
the driving assembly into the opposite side, the impeller must be reversed to face the opposite direction.
The blower is available to use for both 50Hz and 60Hz. Three-phase product is also available to use for 200~240V/380~440V.
|
|
|
| |
