KTB-012S |
 |
|
|
| |
|
| |
|
Voltage(V) |
Outer diameter of the wing
(ø Cm) |
Number of poles
(p) |
Power (kw) |
Frequency
(Hz) |
Rated current (A) |
Revolution per minutes
(rpm) |
Wind volum
(§©/min) |
Rated pressure
(mmAq) |
Protection type(IP type) |

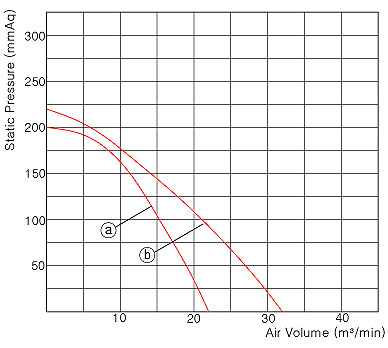

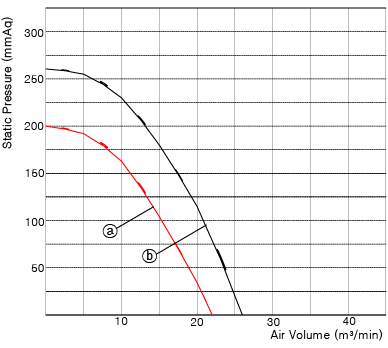

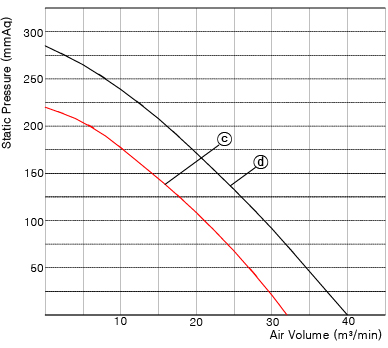

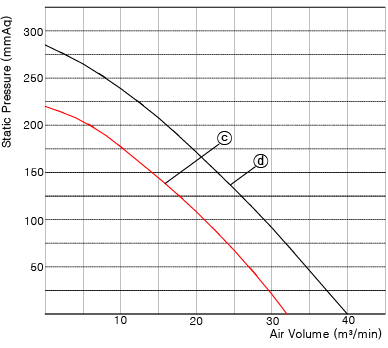

Performance curve
(Curve) |
Weight
(kg) |
|
1 Ø 220 |
327 |
2 |
0.75 |
50 |
6.0 |
2850 |
22 |
195 |
IP54 |
a |
28.5 |
| 60 |
6.2 |
3450 |
28 |
265 |
b |
|
| |
| |
|
KTB-022S |
|
|
|
| |
|
| |
|
Voltage(V) |
Outer diameter of the wing
(ø Cm) |
Number of poles
(p) |
Power (kw) |
Frequency
(Hz) |
Rated current (A) |
Revolution per minutes
(rpm) |
Wind volum
(§©/min) |
Rated pressure
(mmAq) |
Protection type(IP type) |
Performance curve
(Curve) |
Weight
(kg) |
|
1 Ø 220 |
327 |
2 |
1.5 |
50 |
10.8 |
2850 |
32 |
205 |
IP54 |
d |
35 |
| 60 |
12.0 |
3450 |
40 |
285 |
d |
|
| |
| |
|
KTB-032S |
|
|
|
| |
|
| |
|
Voltage(V) |
Outer diameter of the wing
(ø Cm) |
Number of poles
(p) |
Power (kw) |
Frequency
(Hz) |
Rated current (A) |
Revolution per minutes
(rpm) |
Wind volum
(§©/min) |
Rated pressure
(mmAq) |
Protection type(IP type) |

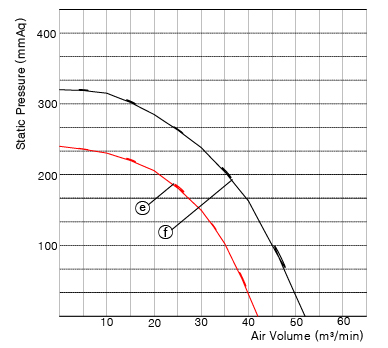

Performance curve
(Curve) |
Weight
(kg) |
|
1 Ø 220 |
340 |
2 |
2.2 |
50 |
12.5 |
2840 |
42 |
220 |
IP54 |
e |
38 |
| 60 |
14.0 |
3440 |
52 |
320 |
f |
|
| |
| |
|
KTB-012T |
|
|
|
| |
|
| |
|
Voltage(V) |
Outer diameter of the wing
(ø Cm) |
Number of poles
(p) |
Power (kw) |
Frequency
(Hz) |
Rated current (A) |
Revolution per minutes
(rpm) |
Wind volum
(§©/min) |
Rated pressure
(mmAq) |
Protection type(IP type) |
Performance curve
(Curve) |
Weight
(kg) |
|
3Ø200~380V |
327 |
2 |
0.75 |
50 |
3.5/2.0 |
2850 |
22 |
195 |
IP54 |
a |
27.5 |
| 60 |
3.6/2.2 |
3450 |
28 |
265 |
b |
|
| |
| |
|
KTB-022T |
|
|
|
| |
|
| |
|
Voltage(V) |
Outer diameter of the wing
(ø Cm) |
Number of poles
(p) |
Power (kw) |
Frequency
(Hz) |
Rated current (A) |
Revolution per minutes
(rpm) |
Wind volum
(§©/min) |
Rated pressure
(mmAq) |
Protection type(IP type) |
Performance curve
(Curve) |
Weight
(kg) |
|
3Ø200~380V |
327 |
2 |
1.5 |
50 |
6.2/3.2 |
2850 |
32 |
205 |
IP54 |
c |
33 |
| 60 |
6.5/3.8 |
3450 |
40 |
285 |
d |
|
| |
| |
|
KTB-032T |
|
|
|
| |
|
| |
|
Voltage(V) |
Outer diameter of the wing
(ø Cm) |
Number of poles
(p) |
Power (kw) |
Frequency
(Hz) |
Rated current (A) |
Revolution per minutes
(rpm) |
Wind volum
(§©/min) |
Rated pressure
(mmAq) |
Protection type(IP type) |

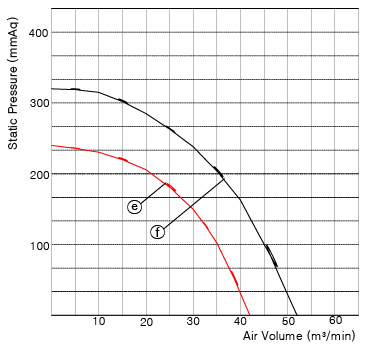

Performance curve
(Curve) |
Weight
(kg) |
|
3Ø200~380V |
340 |
2 |
2.2 |
50 |
9.0/5.1 |
2850 |
42 |
220 |
IP54 |
e |
40 |
| 60 |
9.2/5.3 |
3450 |
52 |
320 |
f |
|
| |
| |
|
KTB-052T |
|
|
|
| |
|
| |
|
Voltage(V) |
Outer diameter of the wing
(ø Cm) |
Number of poles
(p) |
Power (kw) |
Frequency
(Hz) |
Rated current (A) |
Revolution per minutes
(rpm) |
Wind volum
(§©/min) |
Rated pressure
(mmAq) |
Protection type(IP type) |

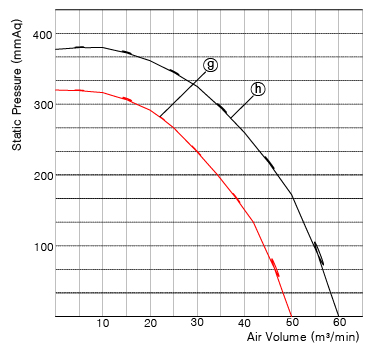

Performance curve
(Curve) |
Weight
(kg) |
|
3Ø200~380V |
380 |
2 |
3.7 |
50 |
13.0/7.5 |
2880 |
52 |
320 |
IP54 |
g |
45 |
| 60 |
14.0/8.1 |
3460 |
63 |
380 |
h |
|
| |
| |
|
Size of the impeller |
 |
|
Power
(kw) |

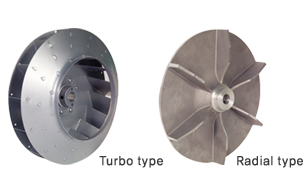

Turbo impeller (Steel) |
Radial impeller (Steel) |
| Outer diameter of fan (ø) |
Height
(mm) |
Diameter of axle (ø) |
Outer diameter of fan (ø) |
Height
(mm) |
Diameter of axle (ø) |
| 0.75 |
327 |
64.2 |
19 |
300 |
38 |
19 |
| 1.5 |
327 |
80.2 |
24 |
327 |
65 |
24 |
| 2.2 |
340 |
110 |
24 |
350 |
83 |
24 |
| 3.7 |
380 |
125.5 |
28 |
380 |
90 |
28 |
|
|
| |
|
blower |
|
|
|
| |
| |
 |
|
| |
|
High temperature blower is 50mm longer in C. L than standard type, while its wind direction and pressure are not changed.
|
|
|
| |
