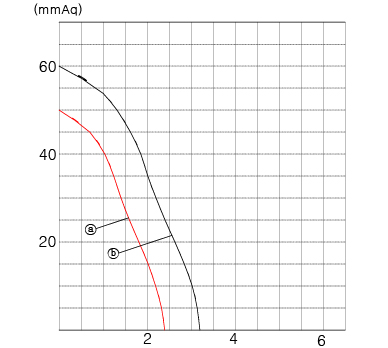

KJ1AB-150 |
 |
|
|
| |
|
| |
|
Voltage(V) |
Outer diameter of the wing
(ø Cm) |
Number of poles
(p) |
Frequency
(Hz) |
Rated current (A) |
Power consumption
(W) |
Revolution per minutes
(rpm) |
Wind volum
(§©/min) |
Rated pressure
(mmAq) |

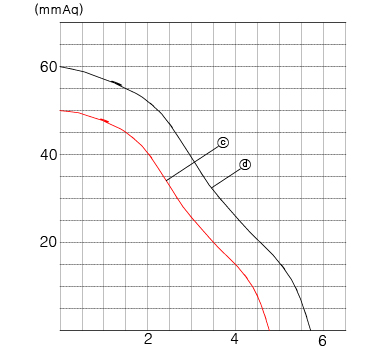

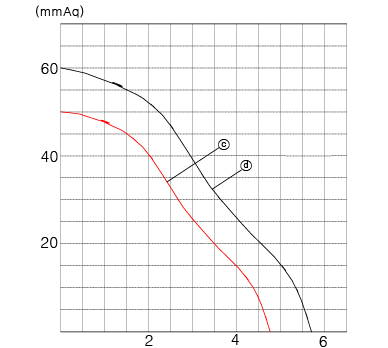

Performance curve
(Curve) |
Protection type(IP type) |
Weight
(kg) |
|
1 Ø 220 |
Ø148×40 |
2 |
50 |
1.0 |
140 |
2760 |
2.6 |
50 |
a |
IP22 |
4.7 |
| 60 |
1.2 |
150 |
3300 |
3.2 |
60 |
b |
|
| |
| |
|
KJ1AB-210 |
 |
|
|
| |
|
| |
|
Voltage(V) |
Outer diameter of the wing
(ø Cm) |
Number of poles
(p) |
Frequency
(Hz) |
Rated current (A) |
Power consumption
(W) |
Revolution per minutes
(rpm) |
Wind volum
( §©/min) |
Rated pressure
(mmAq) |
Performance curve
(Curve) |
Protection type(IP type) |
Weight
(kg) |
|
1 Ø 220 |
Ø154×48 |
2 |
50 |
1.5 |
200 |
2880 |
4.76 |
50 |
c |
IP44 |
7.6 |
| 60 |
1.5 |
210 |
3410 |
5.7 |
60 |
d |
|
| |
| |
|

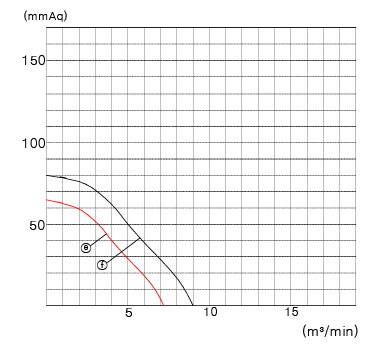

KJ1AB-495 |
|
|
|
| |
|
| |
|
Voltage(V) |
Outer diameter of the wing
(ø Cm) |
Number of poles
(p) |
Frequency
(Hz) |
Rated current (A) |
Power consumption
(W) |
Revolution per minutes
(rpm) |
Wind volum
(§©/min) |
Rated pressure
(mmAq) |
Performance curve
(Curve) |
Protection type(IP type) |
Weight
(kg) |
|
1 Ø 220 |
Ø177×50 |
2 |
50 |
3.2 |
470 |
2890 |
7.2 |
65 |
e |
IP44 |
11.3 |
| 60 |
3.8 |
495 |
3420 |
9.0 |
80 |
f |
|
| |
| |
|

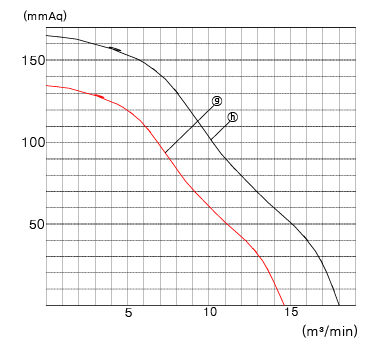

KJ1AB-750 |
 |
|
|
| |
|
| |
|
Voltage(V) |
Outer diameter of the wing
(ø Cm) |
Number of poles
(p) |
Frequency
(Hz) |
Rated current (A) |
Power consumption
(W) |
Revolution per minutes
(rpm) |
Wind volum
(§©/min) |
Rated pressure
(mmAq) |
Performance curve
(Curve) |
Protection type(IP type) |
Weight
(kg) |
|
1 Ø 220 |
Ø200×50 |
2 |
50 |
6.2 |
870 |
2900 |
14.5 |
135 |
g |
IP44 |
18.2 |
| 60 |
6.2 |
1100 |
3440 |
18 |
165 |
h |
|
| |
| |
|
KJ3AB-200 |
|
|
|
| |
|
| |
|
Voltage(V) |
Outer diameter of the wing
(ø Cm) |
Number of poles
(p) |
Frequency
(Hz) |
Rated current (A) |
Power consumption
(W) |
Revolution per minutes
(rpm) |
Wind volum
(§©/min) |
Rated pressure
(mmAq) |
Performance curve
(Curve) |
Protection type(IP type) |
Weight
(kg) |
|
3Ø220V
/380V |
Ø154×48 |
2 |
50 |
1.4/0.8 |
180 |
2890 |
4.76 |
135 |
c |
IP44 |
7.8 |
| 60 |
1.4/0.9 |
200 |
3420 |
5.2 |
165 |
d |
|
| |
| |
|

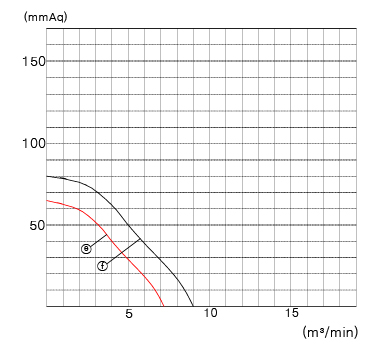

KJ3AB-490 |
|
|
|
| |
|
| |
|
Voltage(V) |
Outer diameter of the wing
(ø Cm) |
Number of poles
(p) |
Frequency
(Hz) |
Rated current (A) |
Power consumption
(W) |
Revolution per minutes
(rpm) |
Wind volum
(§©/min) |
Rated pressure
(mmAq) |
Performance curve
(Curve) |
Protection type(IP type) |
Weight
(kg) |
|
3Ø220V
/380V |
Ø177×50 |
2 |
50 |
2.1/1.2 |
410 |
2890 |
7.2 |
65 |
e |
IP44 |
10.4 |
| 60 |
2.4/1.4 |
490 |
3420 |
9.0 |
80 |
f |
|
| |
| |
|

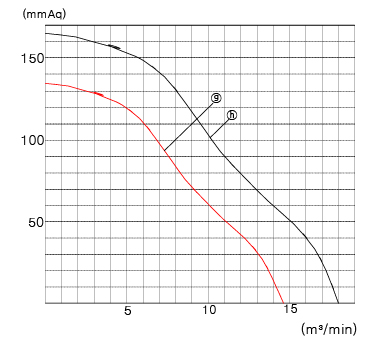

KJ3AB-750 |
 |
|
|
| |
|
| |
|
Voltage(V) |
Outer diameter of the wing
(ø Cm) |
Number of poles
(p) |
Frequency
(Hz) |
Rated current (A) |
Power consumption
(W) |
Revolution per minutes
(rpm) |
Wind volum
(§©/min) |
Rated pressure
(mmAq) |
Performance curve
(Curve) |
Protection type(IP type) |
Weight
(kg) |
|
3Ø220V
/380V |
Ø200×50 |
2 |
50 |
3.8/2.2 |
900 |
2900 |
14.8 |
135 |
g |
IP44 |
17.7 |
| 60 |
3.6/2.1 |
1070 |
3440 |
18 |
165 |
h |
|
| |
| |
 |
|
| |
|
High temperature blower is 50mm longer in C. L than standard type, while its wind direction and pressure are not changed. |
|
| |
| |
 |
|

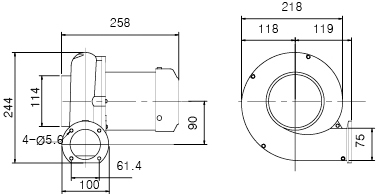

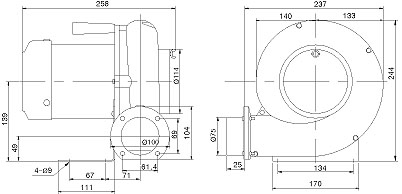

KJ3A-200 |
 |
|
|
| |
|
Voltage(V |

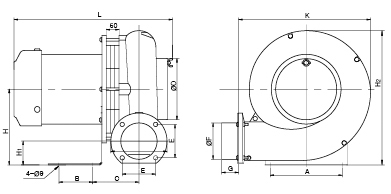

Dimensions |
|
Ø A |
Ø B |
C |
Ø D |
E |
F |
Ø G |
H |
H1 |
K- ØP |
L |
M |
|
3Ø |
114 |
- |
61.4 |
100 |
119 |
118 |
75 |
90 |
244 |
4-5.6 |
258 |
218 |
|
- Blower for hopper, which has same performance as AL blower, is used for extruder cooling and material drying.
- Appearances and specifications of the products are subjected to change without notice.
- Please ask the Technology department of the company for more technical information |
| |
|

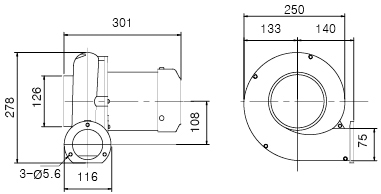

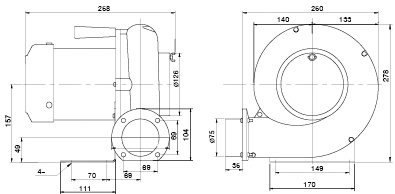

KJ3A-490 |
|
|
|
| |
|
Voltage(V |
Dimensions |
|
Ø A |
Ø B |
C |
Ø D |
E |
F |
Ø G |
H |
H1 |
K- ØP |
L |
M |
|
3Ø |
126 |
103 |
- |
116 |
140 |
133 |
75 |
108 |
278 |
3-5.6 |
301 |
250 |
|
- Blower for hopper, which has same performance as AL blower, is used for extruder cooling and material drying.
- Appearances and specifications of the products are subjected to change without notice.
- Please ask the Technology department of the company for more technical information |
