Specification |
Phase of motor |
Mono-phase Triple-phase |
Voltage |
220,220/380,440V |
Frequency |
60Hz(50Hz) |
Number of Pole |
2P |
Exterior body |
Airtight type |
Cooling type |
Compulsory cooling with fan |
Rating |
Continuous |
insulation grade |
B, F |
Protective grade
of the motor |
IP54(IP55) |
Application |
Blower ,Blower for all kinds of dust collector |
|
  |
| |
| |
Phase of Motor
-(kW) |
Wind volume( §© /min) |
Rated pressure (mmAq) |

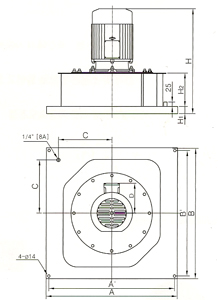

Dimensions |
Weight
(kg) |
| A |
A' |
B |
B' |
C |
D |
H |
H1 |
H2 |
KDB-1001 |
1-0.75 |
12 |
230 |
480 |
450 |
480 |
450 |
225 |
138 |
402 |
30 |
103 |
27.5 |
KDB-2001 |
1-1.5 |
25 |
230 |
580 |
550 |
580 |
550 |
226 |
153 |
475 |
38 |
138 |
43.5 |
KDB-3001 |
1-2.2 |
40 |
230 |
730 |
700 |
730 |
700 |
297 |
153 |
495 |
40 |
156 |
51 |
KDB-1000 |
3-0.75 |
12 |
230 |
480 |
450 |
480 |
450 |
225 |
138 |
402 |
30 |
103 |
210 |
KDB-2000 |
3-1.5 |
25 |
230 |
580 |
550 |
580 |
550 |
226 |
153 |
475 |
38 |
138 |
41 |
KDB-3000 |
3-2.2 |
40 |
230 |
730 |
700 |
730 |
700 |
297 |
153 |
495 |
40 |
156 |
50 |
KDB-5000 |
3-3.7 |
60 |
230 |
730 |
700 |
730 |
700 |
297 |
167 |
520 |
40 |
187 |
68 |
KDB-7500 |
3-5.5 |
80 |
230 |
730 |
700 |
730 |
700 |
297 |
167 |
645 |
45 |
210 |
91 |
KDB-10000 |
3-7.5 |
100 |
250 |
730 |
700 |
730 |
700 |
297 |
167 |
680 |
45 |
210 |
98 |
|
|
 |
|
|
|
